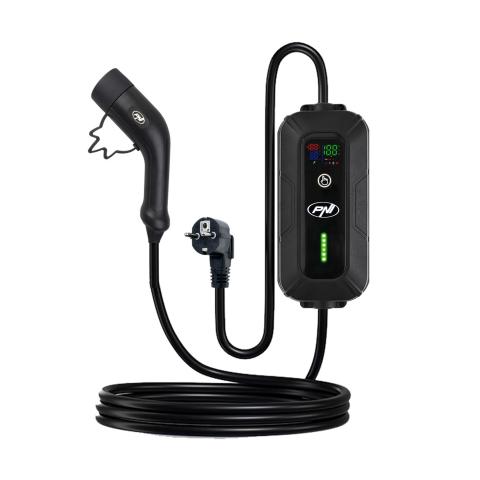

Portable charger PNI KW3 16A, 3.5KW, for electric cars

Portable charger PNI KW3, 16A, 3.5KW, for electric cars, 230V, single-phase, Type 2 cable and 5-pin IEC62196 connector, with timing, IP66

Shipping price: 19 Lei
SKU: PNI-KW3
GTIN: 5949066541704
Stock Status: In Stock
Delivery Status: 1-3 days
Warranty: 24 months, Payment by bank transfer
750 Lei
pcs.

Description

1

Portable EV Charger | 3.5 kW | 230V | single-phase

The portable charger for electric vehicles, with a maximum power of 3.5 kW and single-phase power supply at 230V, is flexible, safe, easy to use – ideal for home or on the go.

2 Advanced functionalities

Timer for scheduling charging sessions, for example, outside peak hours or during reduced tariffs
Selectable charging current. This model allows you to select the nominal current depending on the network capacity or the needs of the moment – ​​8A, 10A, 13A or 16A (default value) – thus providing control and adaptability in any context of use..3 Informative display with multiple functions

A clear set of LED indicators completes the user experience, providing quick visual feedback on the status of the charger – normal operation, active charging process, error or completion. All these elements are designed to provide a high level of safety and ease of use, even for those without technical experience.4 Recommended use

With its portability, this charger is perfect for individual users who want to charge their electric vehicle at home, but also have a backup solution that they can easily carry in the trunk, for use at the office, on vacation or in locations without dedicated stations.

Technical Data

Product Identification
Product code PNI-KW3
Color Black
General features
Charging station type Portable
Charging mode Mode 2
Supply voltage Single-phase: 230 V AC
Output voltage 85 - 415 V
Input frequency 50/60 Hz
Rated current 16 A (factory setting) (selectable 8A/10A/13A/16A)
Configuration/use - digital display
- Multifunctional touch button
Operating temperature -20 ~ 70°C
General protection level IP55
Fire protection level UL94V-0
Maximum altitude less than 2000 m
Type 2 cable length 5 m
Vehicle charging connector Type 2
Power connector single-phase Schuko 16A
Package includes
Portable charger Yes
Mounting accessories Carrying case
User manual Yes
