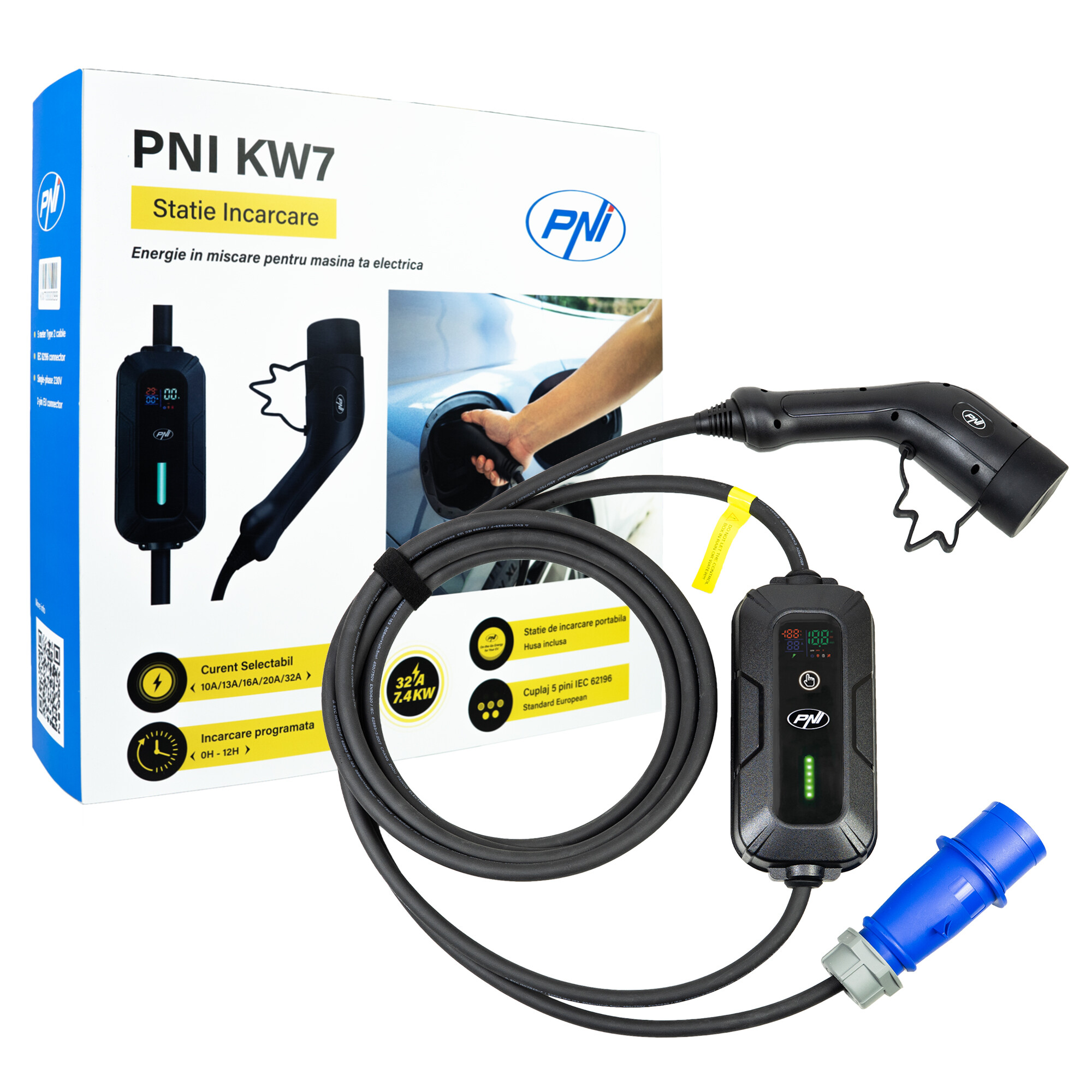

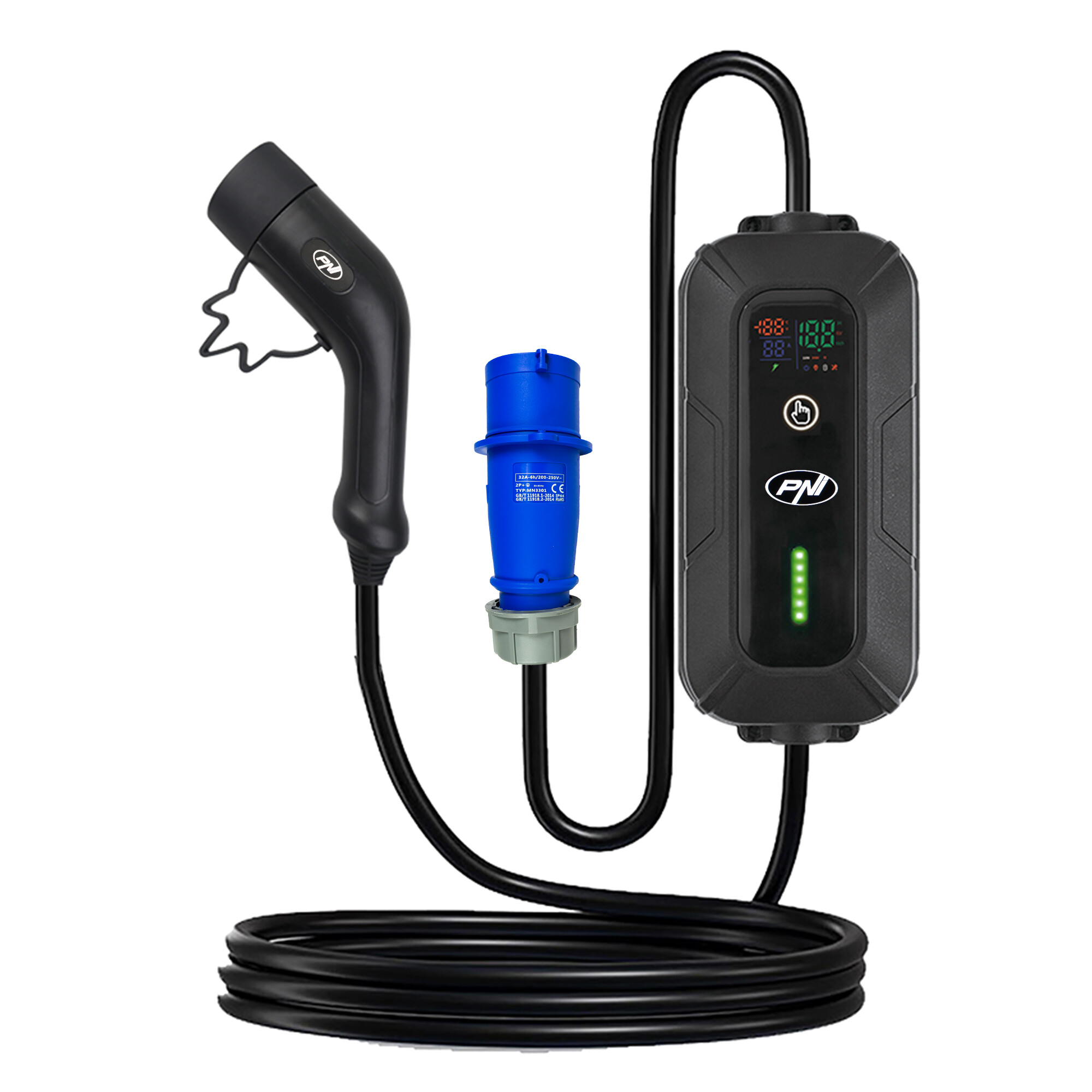

Portable charger PNI KW7 32A, 7.4KW, for electric cars, 230V, single-phase, Type 2 cable with 5-pin connector, with timer
Portable charger PNI KW7 32A, 7.4KW, for electric cars, 230V, single-phase, Type 2 cable and 5-pin IEC62196 connector, with timing, IP66
Description
Portable EV Charger | 7.4 kW | 230V | single-phase
The portable charger for electric vehicles, with a maximum power of 7.4 kW and single-phase power supply at 230V, is flexible, safe, easy to use – ideal for home or on the go.

Advanced functionalities
Timer for scheduling charging sessions, for example, during off-peak hours or during reduced tariffs
Selectable charging current. This model allows you to select the nominal current depending on the network capacity or the needs of the moment – 10A, 13A, 16A, 20A or 32A (default value) – thus providing control and adaptability in any context of use.

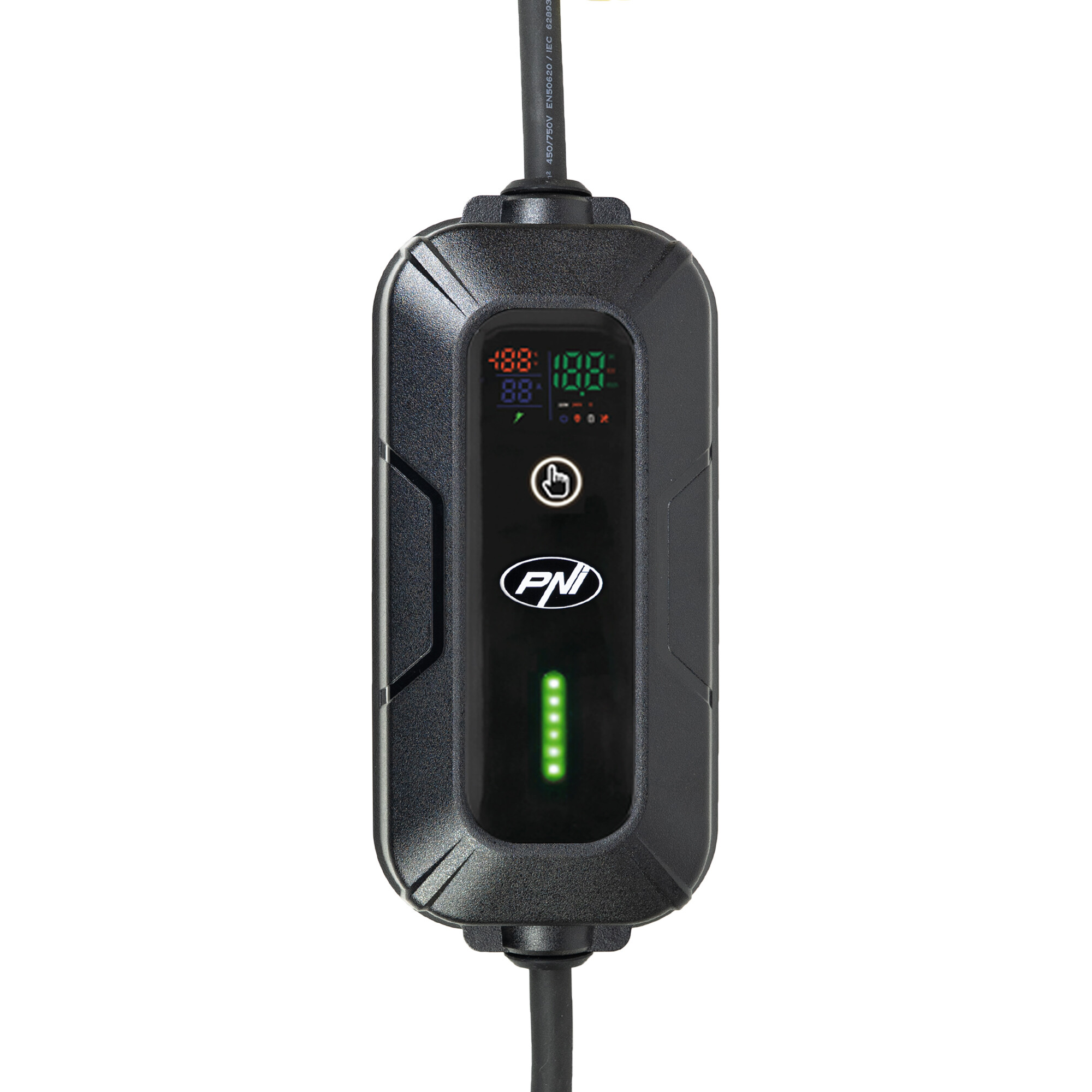

Informative display with multiple functions
A clear set of LED indicators completes the user experience, providing quick visual feedback on the status of the charger – normal operation, active charging process, error or completion. All these elements are designed to provide a high level of safety and ease of use, even for those without technical experience.

Recommended Use
With its portability, this charger is perfect for individual users who want to charge their electric vehicle at home, but also have a backup solution that they can easily carry in the trunk, for use at the office, on vacation or in locations without dedicated stations.
Technical Data
| Product Identification | |
|---|---|
| Product code | PNI-KW7 |
| Color | Black |
| General features | |
| Charging station type | Portable |
| Supply voltage | Single-phase: 230 V AC |
| Input frequency | 50/60 Hz |
| Rated current | 32 A (factory setting) (selectable 10A/13A/16A/20A/32A) |
| Configuration/use | - digital display, Multifunctional touch button |
| Usage temperature | -20 ~ 70°C |
| General protection level | IP66 |
| Fire protection level | UL94V-0 |
| Maximum altitude | less than 2000 m |
| Type 2 cable length | 5 m |
| Warranty | 24 months |
| Weight | 3,633 Kg (Net weight: 3,125 Kg) |

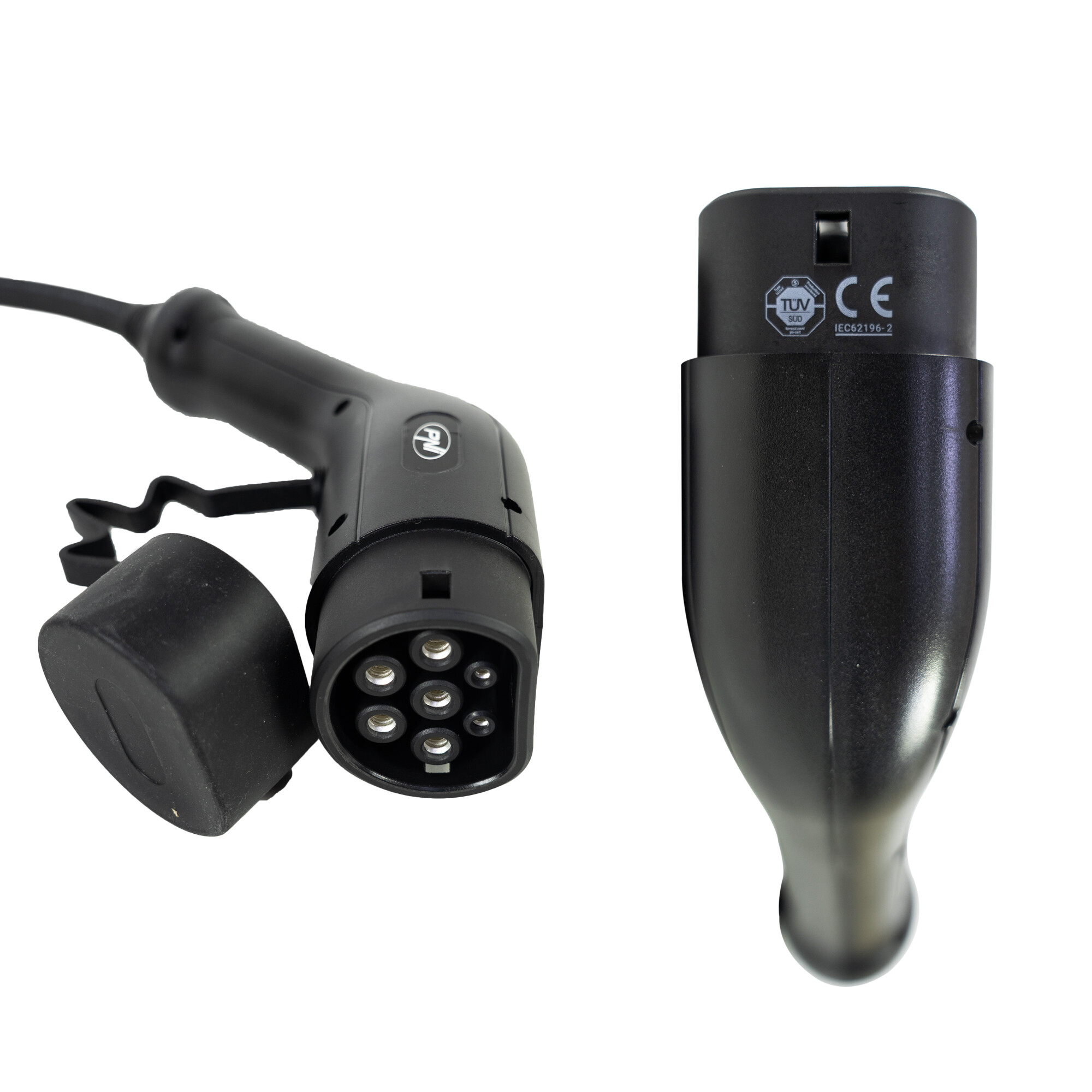

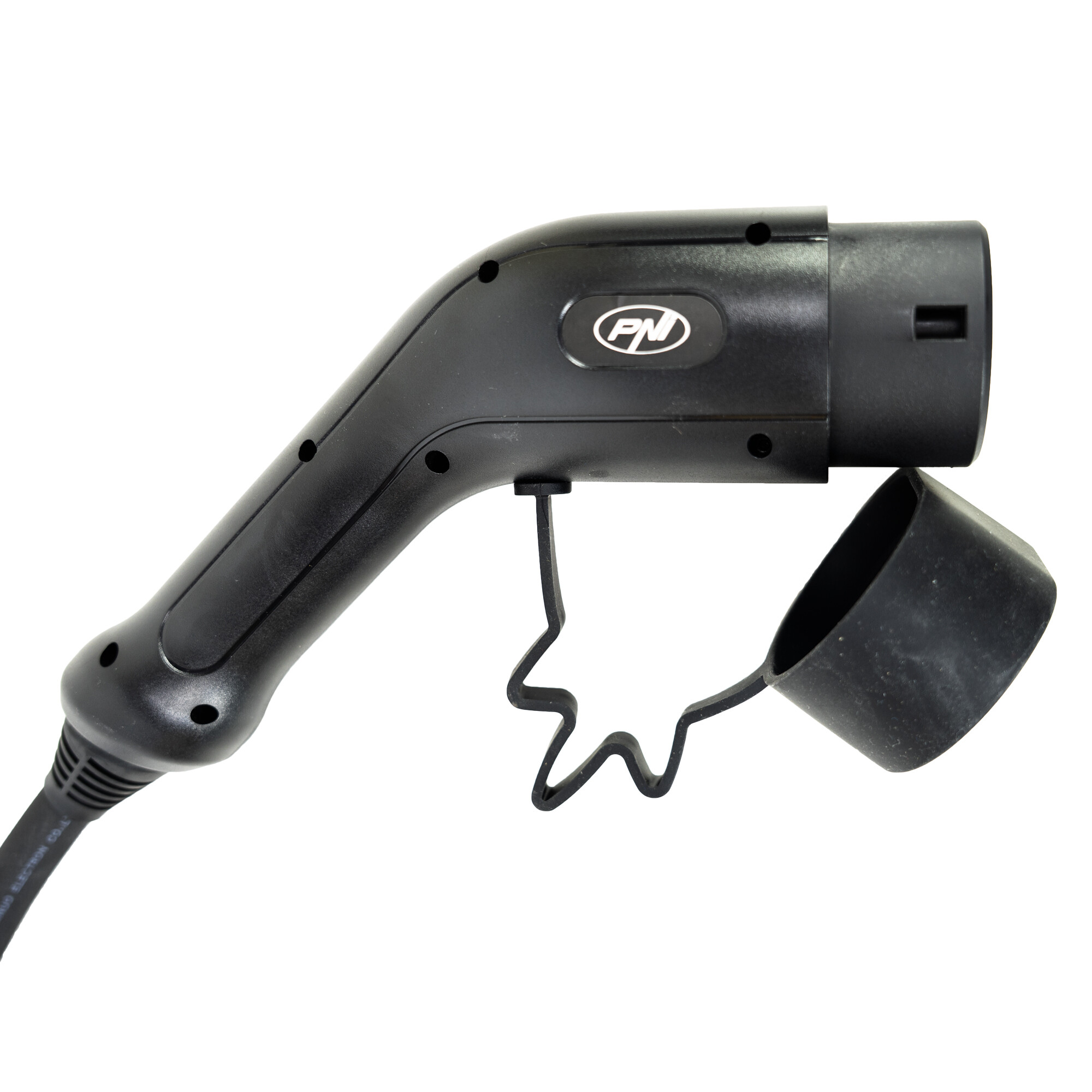

| Vehicle charging connector | Type 2 |
| Power connector | single-phase power 32A 2P+T MN3301 |
| Package includes | |
| Portable charger | Yes |

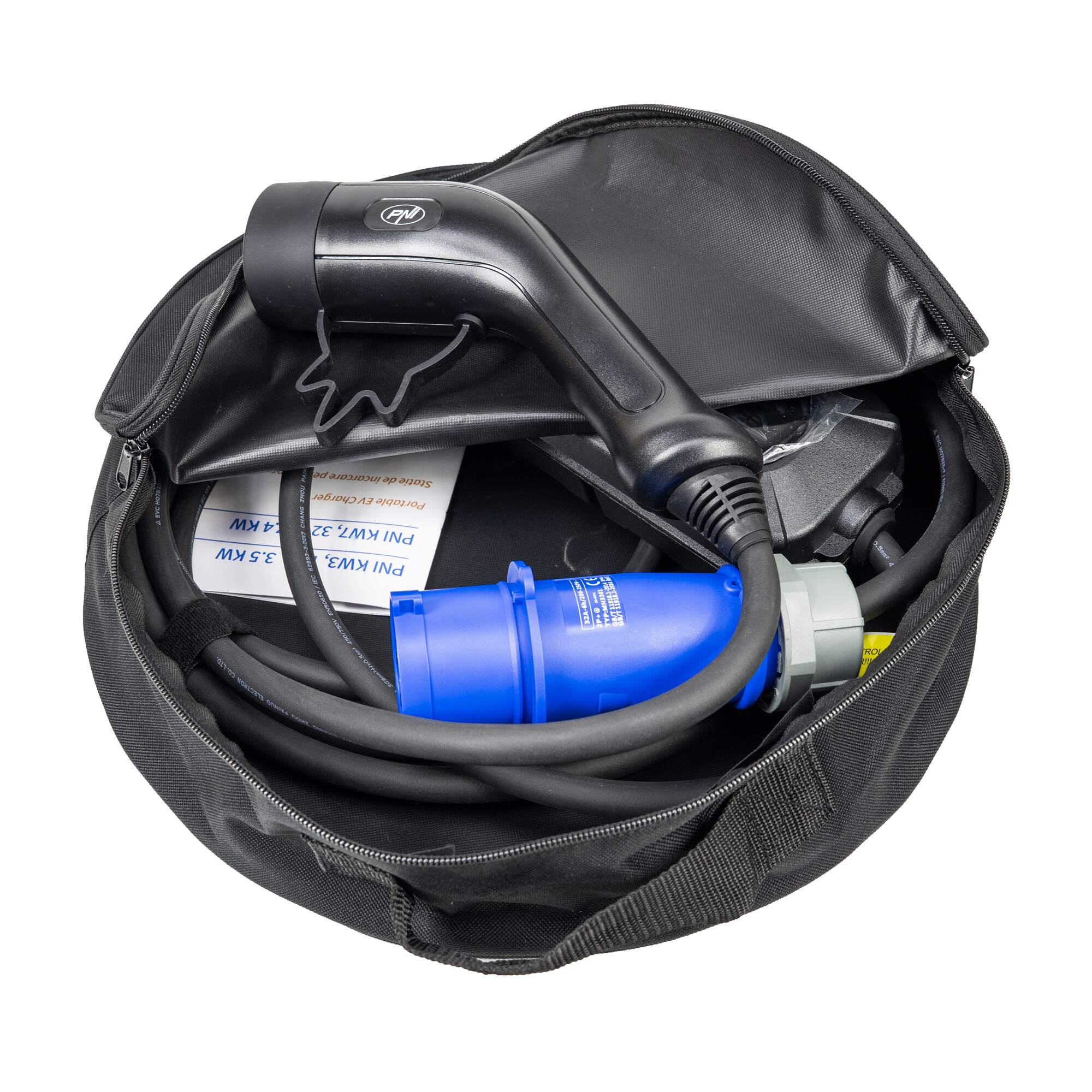

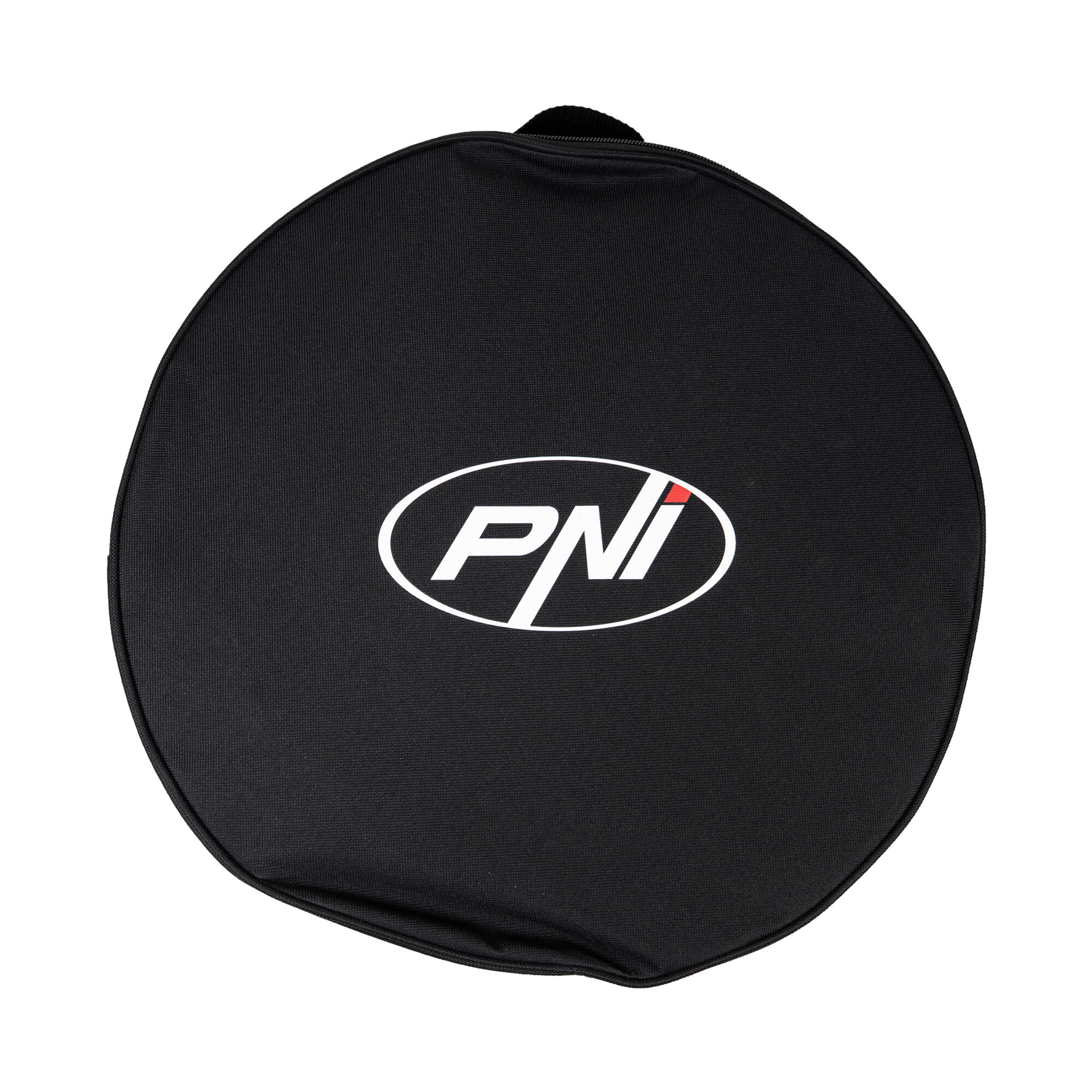

| Mounting accessories | Carrying case |
| User manual | Yes |
