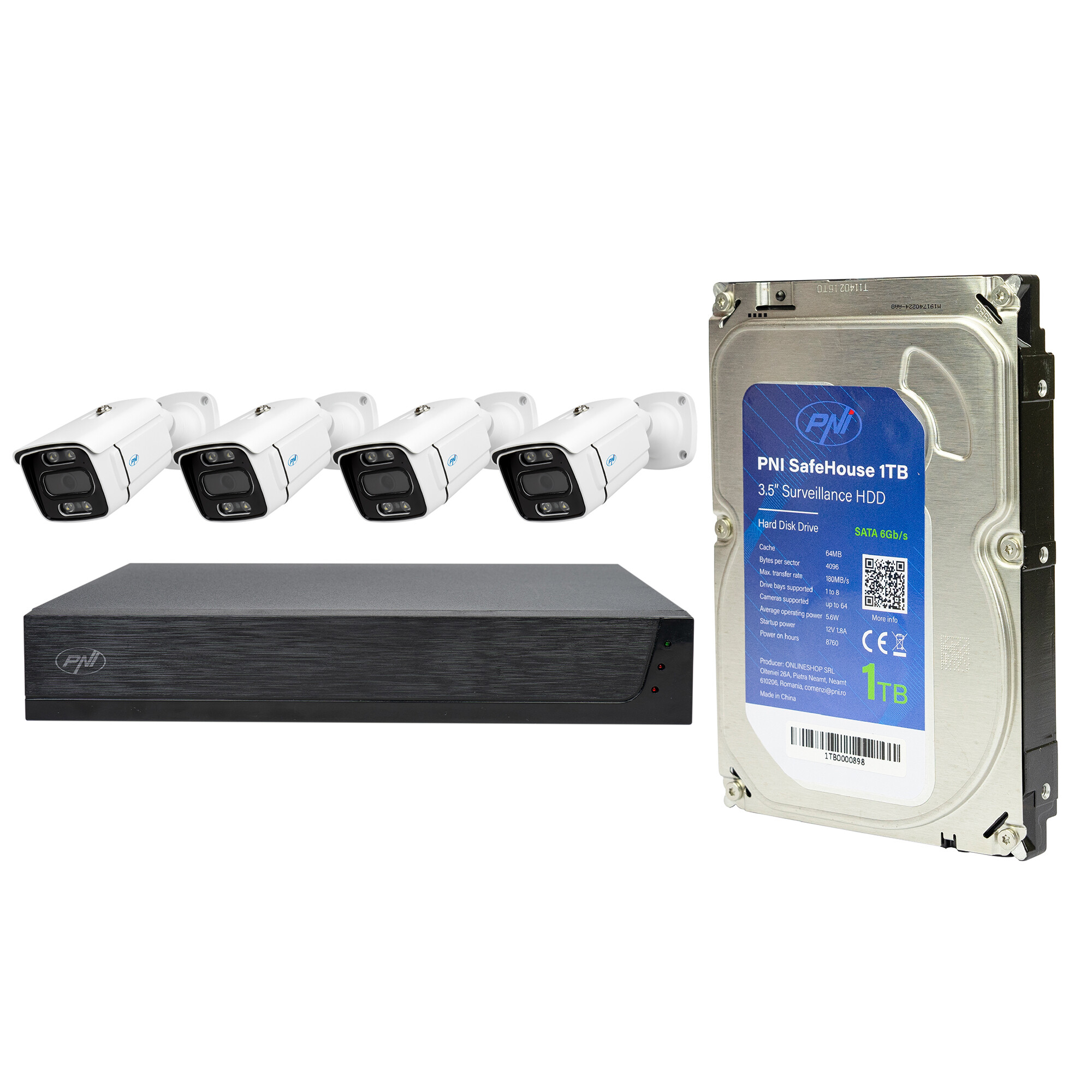

PNI House IPMAX POE 3 Video Surveillance Kit with 4 3MP IP Cameras, POE NVR and 1TB HDD

Complete system with POE NVR, 4 outdoor 3MP IP cameras and 1TB HDD. Easy installation, clear image and remote access.

Shipping price: 19 Lei
SKU: PNI-IMAX3-1TB
GTIN: 5949066540844
Stock Status: In Stock
Delivery Status: 1-3 days
Warranty: 24 months, Payment by bank transfer
1,550 Lei
pcs.

Description

PNI House IPMAX POE 3 Video Surveillance Kit – Total Performance and Control

Ensure complete protection for your home or business with the PNI House IPMAX POE 3 surveillance system, equipped with 4 3MP IP cameras and an NVR with 4 POE ports. Each camera captures image and sound, offering superior clarity day and night, and configuration is simple, via a single network cable.
Local and remote control

Control and access the system quickly, either locally or remotely, directly from your phone or tablet. With the free XMEye application (Android/iOS), you can watch in real time or play recordings from anywhere. For PC, the General CMS software is available (included on CD or downloadable from the website).

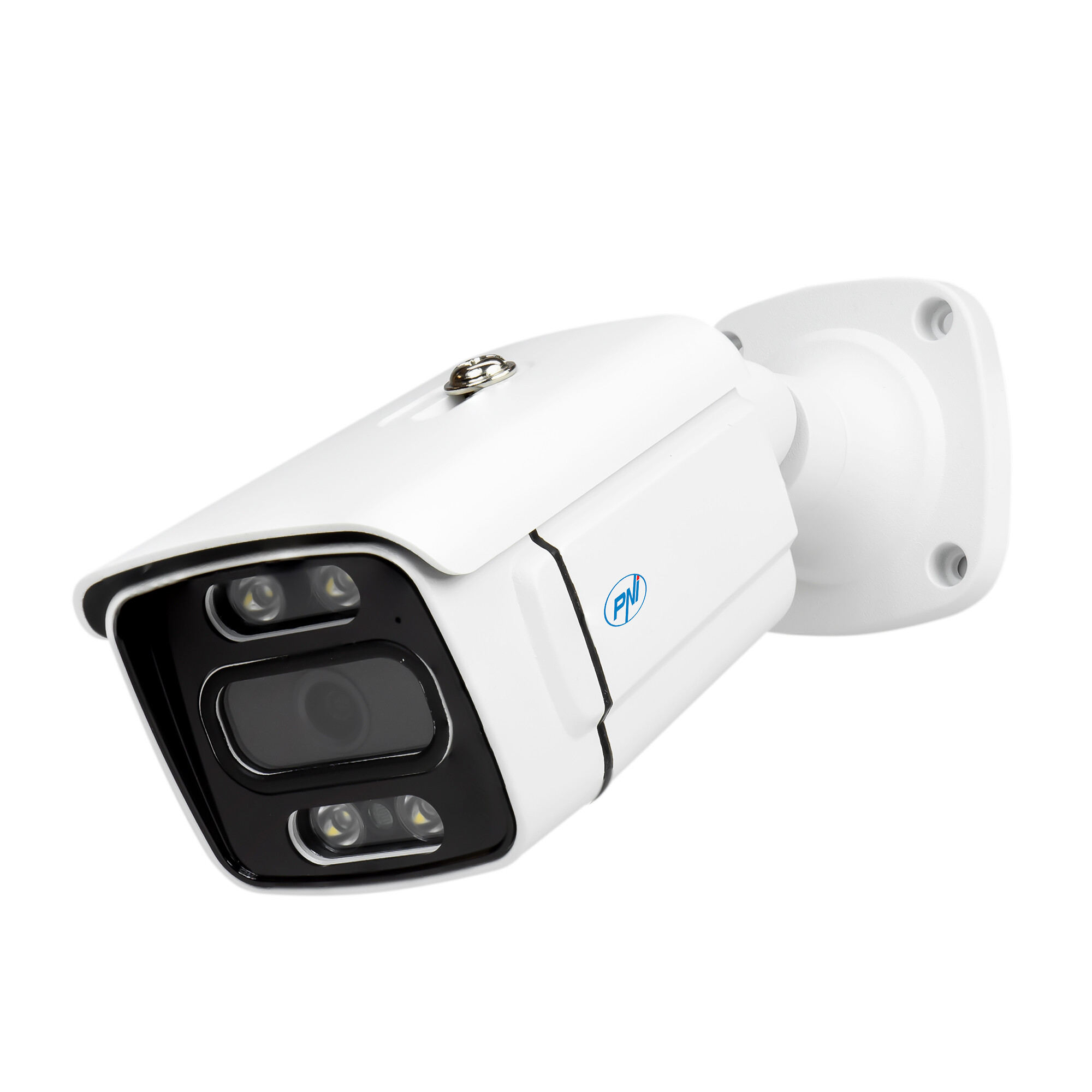

3MP IP cameras with IR and white light

The 4 included IP cameras are equipped with an integrated microphone and offer 3 megapixel resolution (2304 x 1296px). Night vision is ensured by 4 IR LEDs and white light (Flashlight), with an effective field of view of up to 15 meters.
Intelligent H.265AI Compression

The system uses advanced H.265 AI / H.265+ compression technology, which significantly reduces file size without losing video quality. You can connect an HDD of up to 8TB (not included in the package).
Support for 9 IP cameras up to 8MP

The NVR supports up to 4 cameras connected directly via POE ports or up to 9 IP cameras via a POE switch. Compatible with cameras up to 8MP (4K resolution), providing extensive configuration flexibility.
Full connectivity and fast backup

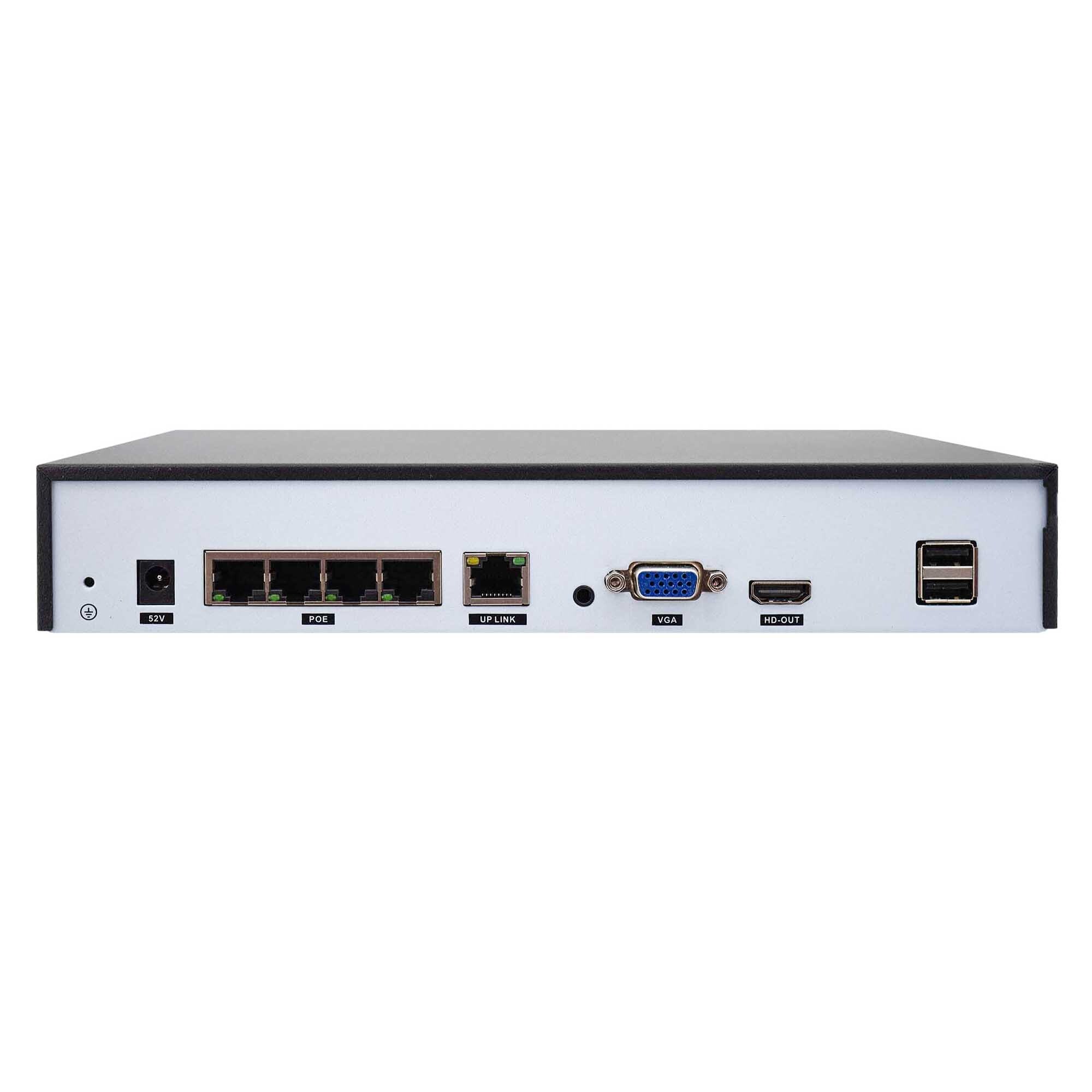

The device is equipped with HDMI and VGA outputs, for connection to any monitor. Recordings can be saved locally on a USB stick or downloaded remotely via the internet. The network connection is made via the RJ45 LAN port.
Single cable power supply (POE)

Each camera connects via a single Ethernet cable (included), which transmits both the video signal and the power. You no longer need external sources or additional cables. You can use cables up to 100 meters long (the kit includes 4 cables of 18.3 meters).
Quick installation and Plug & Play

The system is easy to configure – simply connect the cameras and the NVR, and the system is ready to operate. Access is made via the mobile application, PC software or directly via the browser (Internet Explorer).
Intelligent human face detection

The system can automatically identify and save human faces and shapes (function available depending on the cameras used). Thus, you can quickly filter video events based on these criteria.

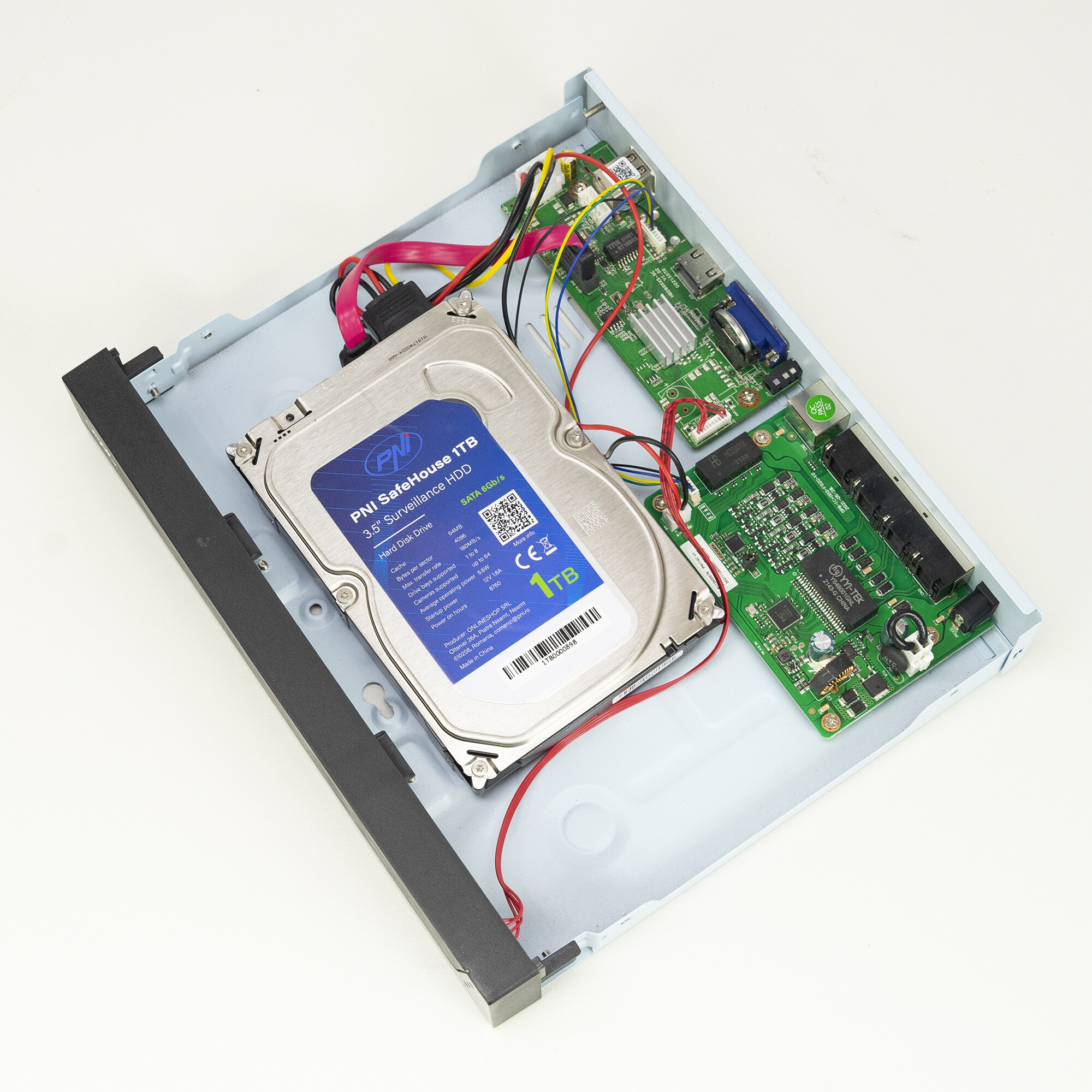

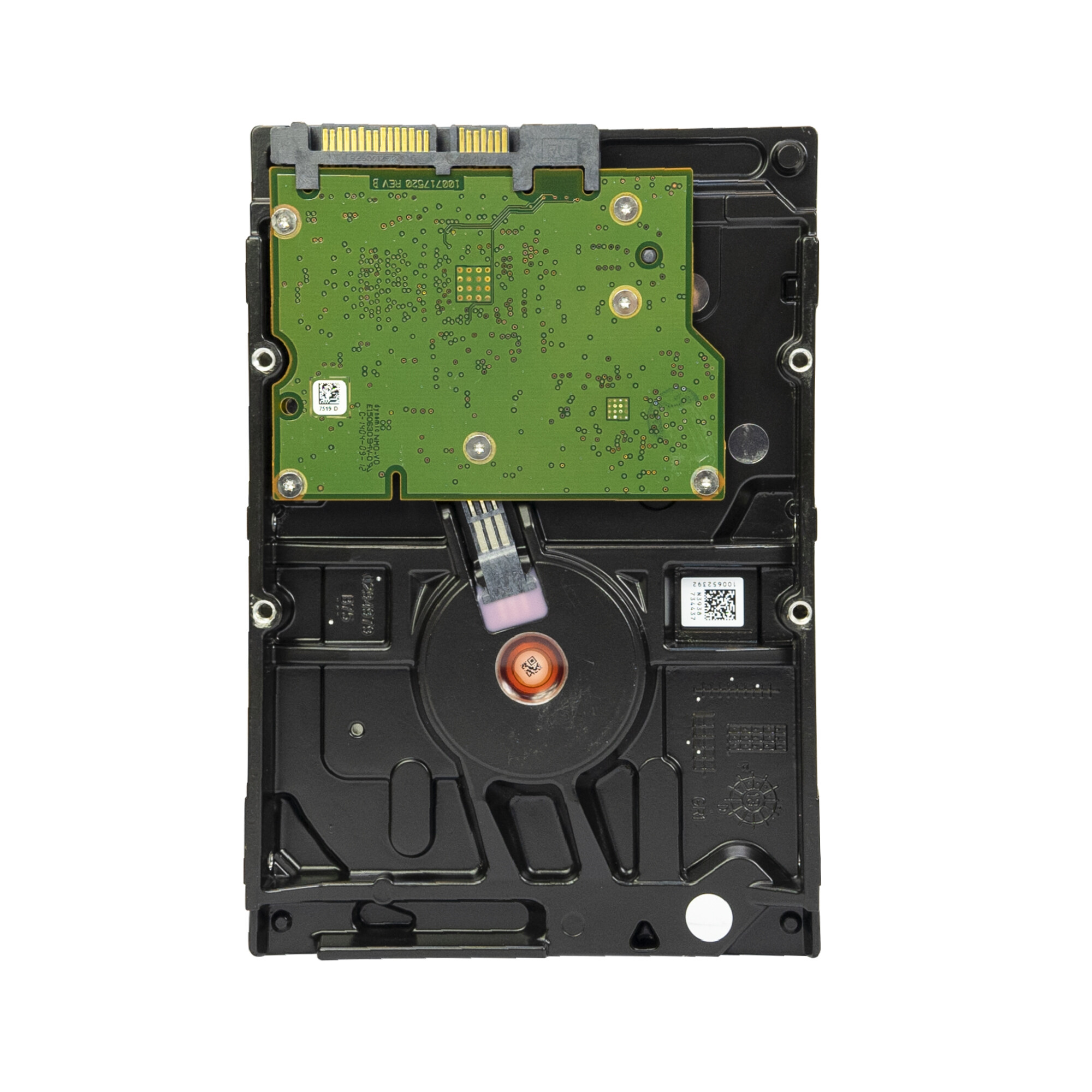

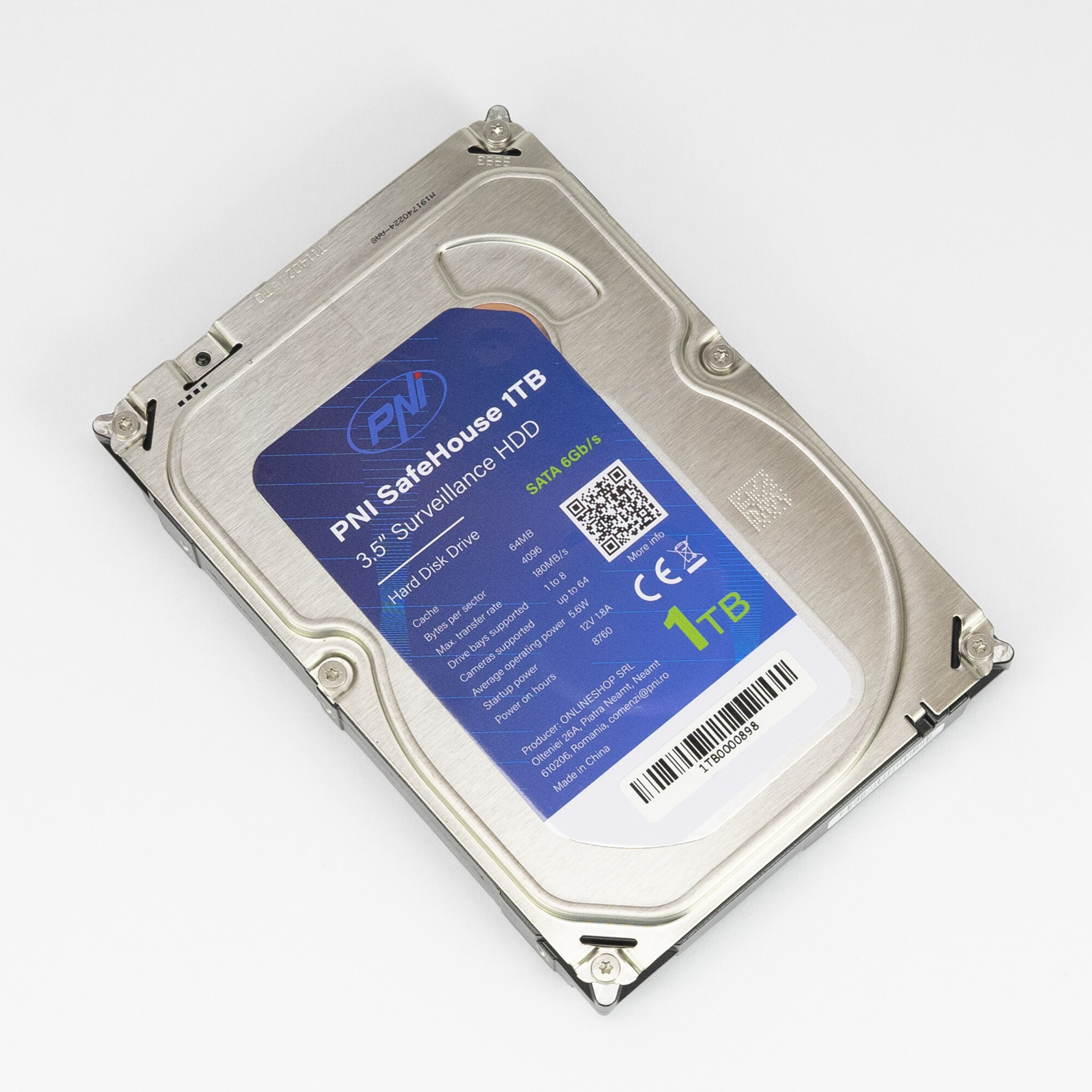

Supports HDD up to 8TB

We recommend using a dedicated HDD for surveillance systems, designed for continuous operation 24/7. The NVR supports a hard drive up to 8TB (not included).

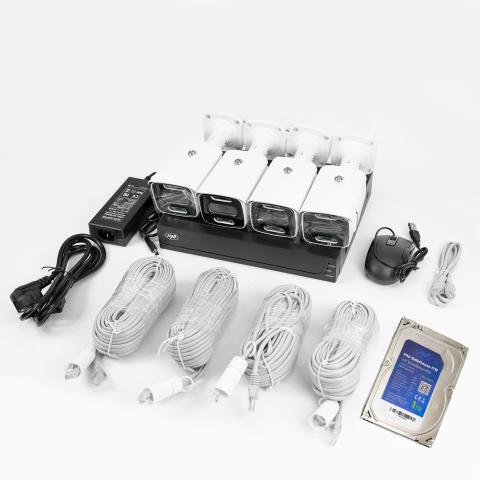

The package contains:

1x 4-channel POE NVR
4x 3MP IP cameras with microphone
4x 18.3m Ethernet cables
1x mouse
1x CD with CMS software
Mounting accessories

Ideal for home, office, shop or any other location that requires secure and modern video surveillance.

Technical Data

Product identification
Manufacturer PNI
Product code PNI-IPMAX3
DVR/NVR color Black
Camera color White/Black

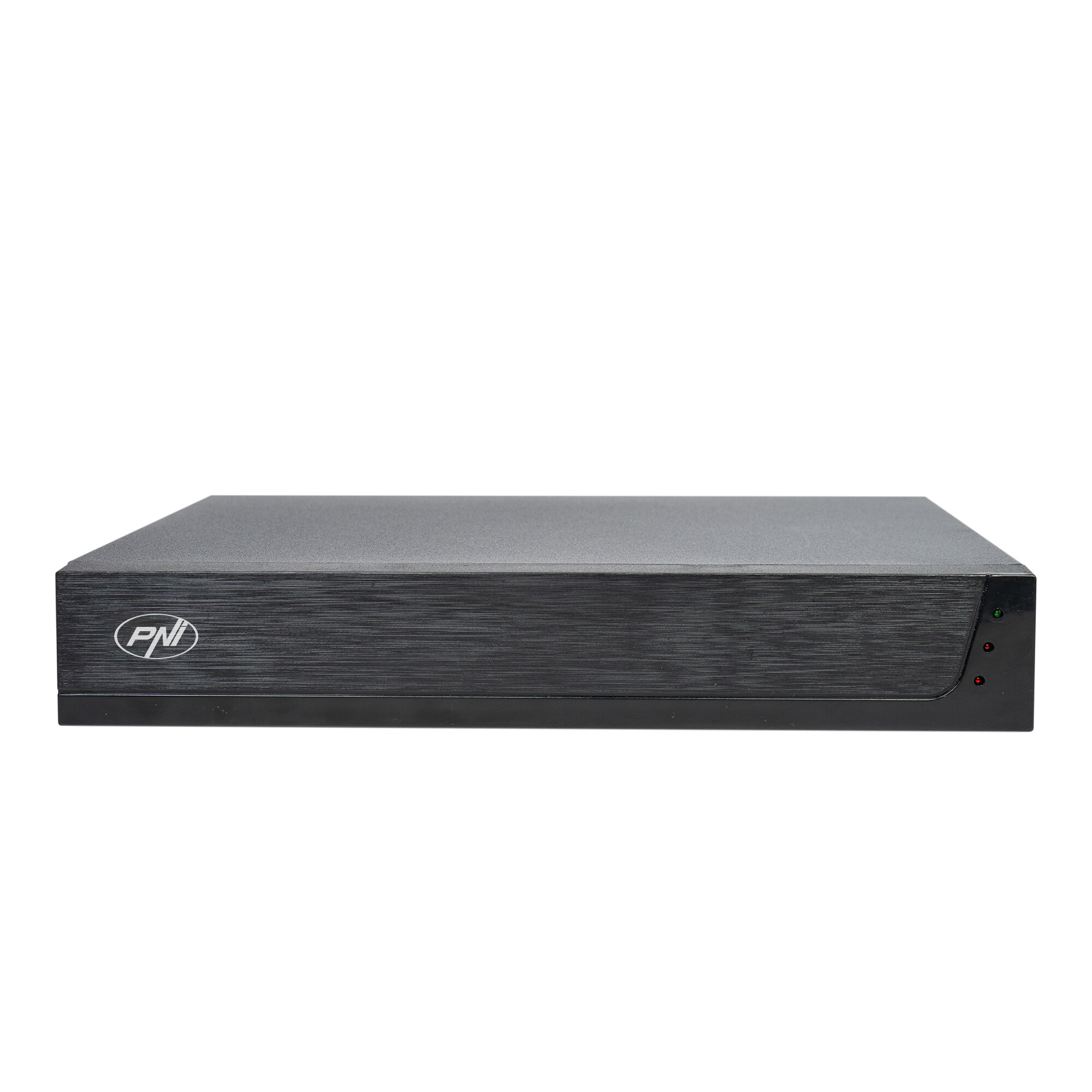

DVR/NVR features
Video inputs 4 x POE max. 4K
Video outputs 1 x VGA, 1 x HDMI
Playback resolution 2K (HDMI) / 1080P (VGA)
Recording resolution 9 x max. 4K
Audio outputs 1 x 3.5 mm
Recording type Simultaneous audio and video recording
Audio compression G711A
Video compression H.265AI / H.265+
Data storage maximum 1 x 8 TB HDD 3.5
Network interface RJ45 10/100 Mbps
Firmware update Yes, via USB
Power supply 48V/ 2A
Consumption 10 W (without HDD)
Operating temperature -26°C ~ +80°C
Dimensions 255 x 220 x 43 mm
Number of channels 9 digital
Recording resolution and number of channels, variants 9 x max. 4K
PTZ Control Support
USB Ports 2 x USB2.0
Dedicated Application XMEye
Network Yes, RJ45 LAN Port
Recording Modes Manual, Motion Detection, Scheduled
Motion Detection Yes
Chip Detection Yes
Human Shape Detection Yes

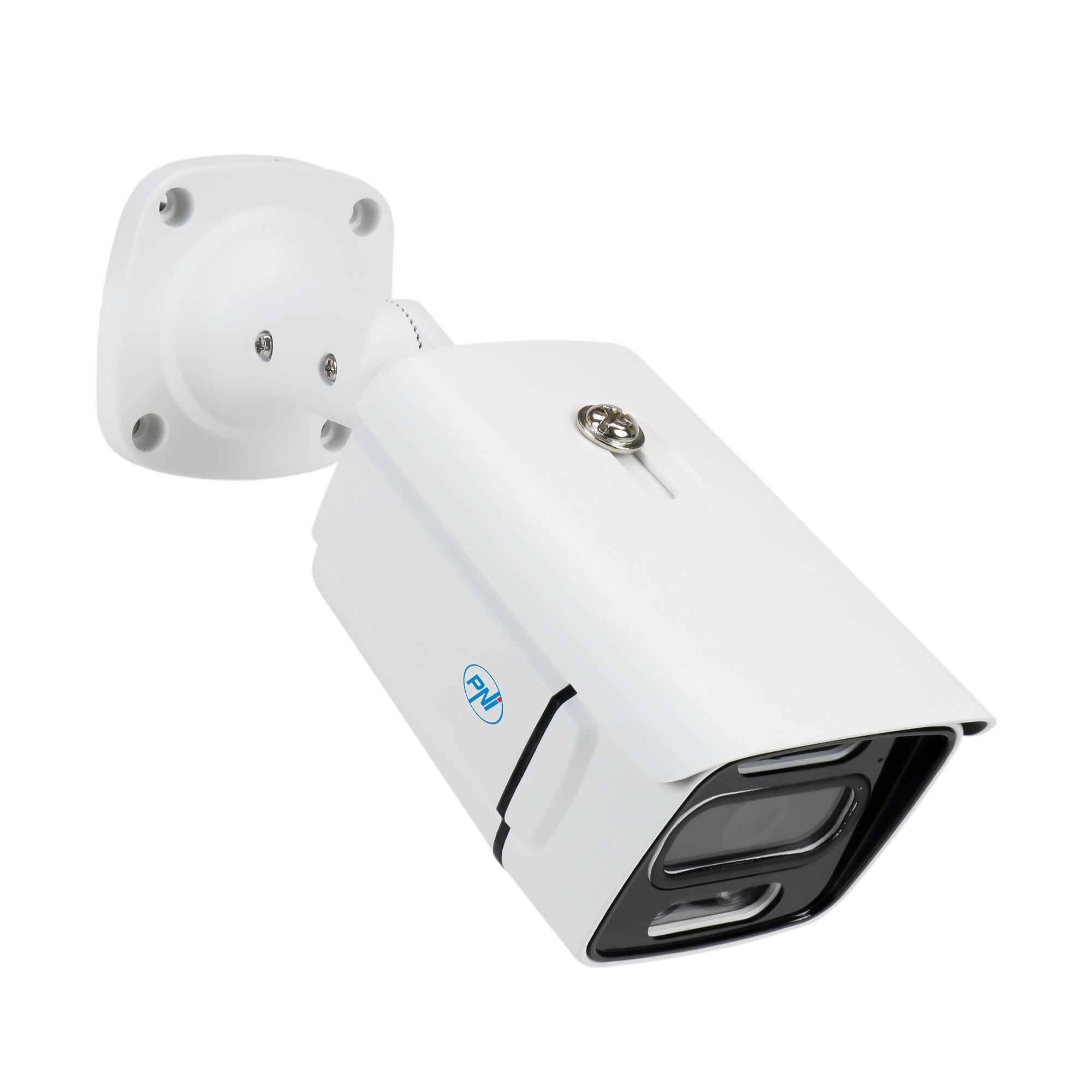

Camera Features
Video System PAL/NTSC
Pixels 2304 x 1296
Video Output Digital, via RJ45
Audio Input Built-in Microphone
Minimum Illumination 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)
Protection Grade IP66, Metal Housing
IR Illumination Distance Up to 15 m
Dimensions 70 x 190 x 65 mm
Number of IR LEDs 4 IR LEDs and Floodlight
Power Supply POE
Lens 3.6 mm
Network Interface RJ45 10/100Mps
Operating temperature -26°C ~ +80°C
Dedicated application XMEye
Sensor resolution 3MP
Package includes
DVR / NVR Yes
Surveillance cameras 4 indoor/outdoor cameras
Camera connection cables 4 x 18.3 m
NVR / DVR power supply 230V -> 48V
Software CD Yes
User manual Yes
USB mouse Yes
