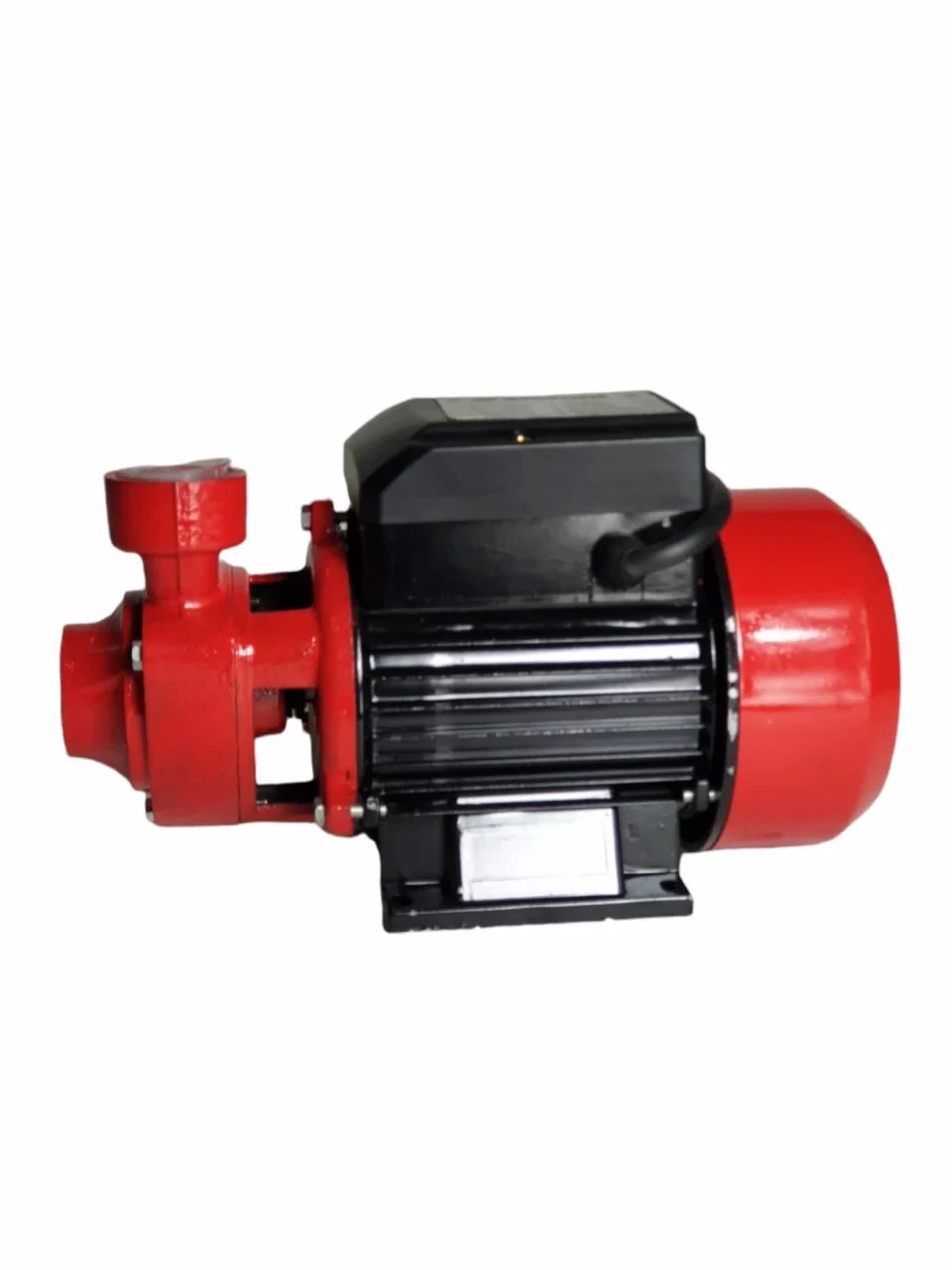

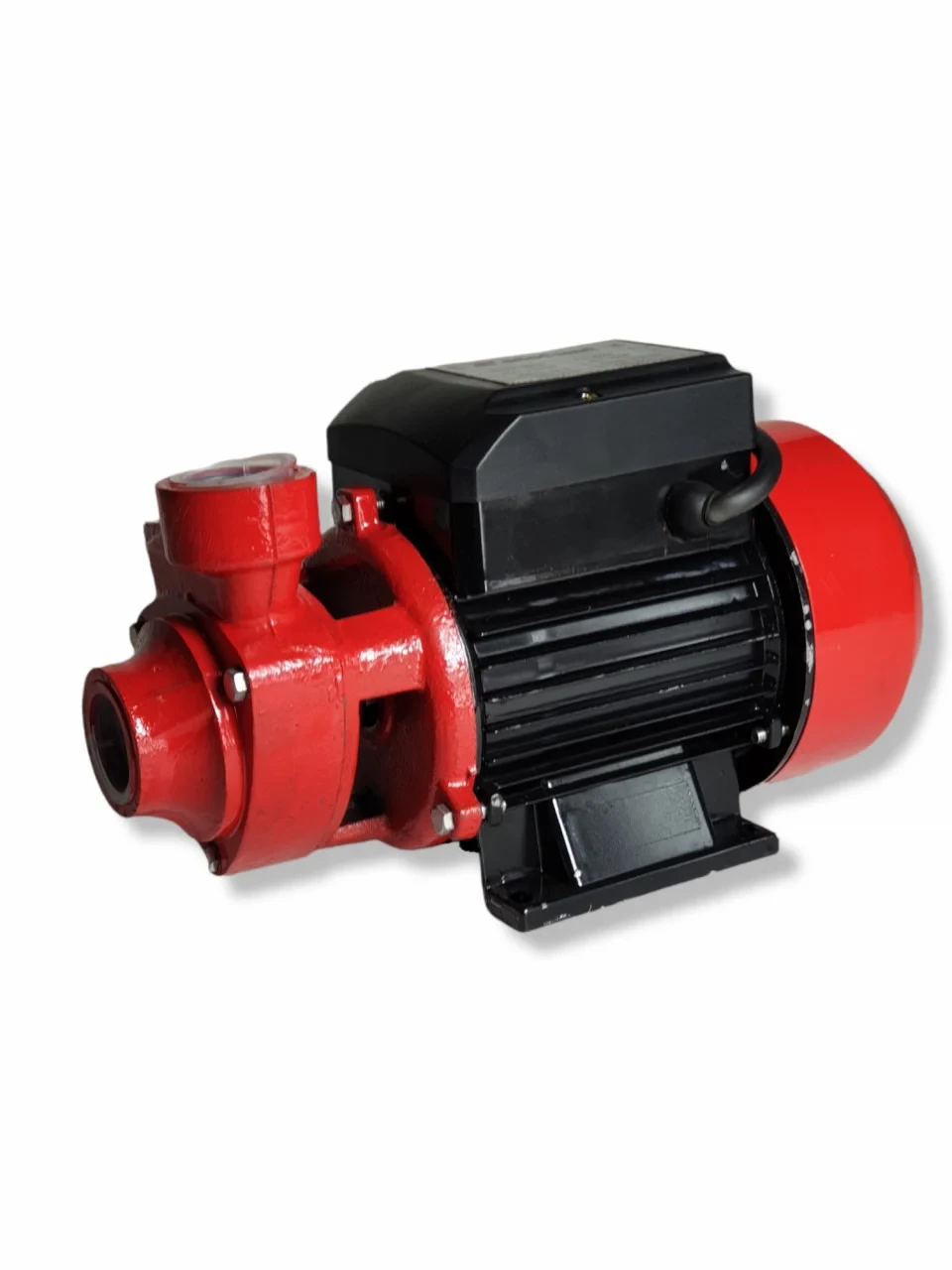

Peripheral pump, QB60

The QB60 surface pump with small impeller is an equipment used to increase the water pressure for supplying the home or irrigation. The product is intended for extracting non-aggressive liquids, without sand or other mechanical impurities, from wells, lakes, pools. This device is equipped with an efficient motor with a power of 0.37 KW, equipped with a steel shaft, which ensures a speed of 2850 rpm. The pump has dimensions of 27 x 13 x 16 cm, liquid suction power of 9 m and a flow rate of 35 l/min. Assembly/use instructions: The model also works in hydrophore mode, if it is connected to a system with an expansion tank, pressure switch, pressure gauge and a check valve or presscontrol. The pump must be used at temperatures below 40˚C. The product is suitable for irrigation of gardens, agricultural land, water supply of high-rise buildings. Advantages: easy to use, easy to assemble, the materials used are resistant to long-term use, light weight.
