Complete kit for automation of self-supporting gates PNI AP800C

Gate dimensions
The product is equipped with a 6 m rack for a gate opening of  4.5 m and a gate tail of 1.5 m.

For example, for a gate opening of 7.5 m we have a gate tail of  2.5 m.

automation

Automation system for self-supporting gates

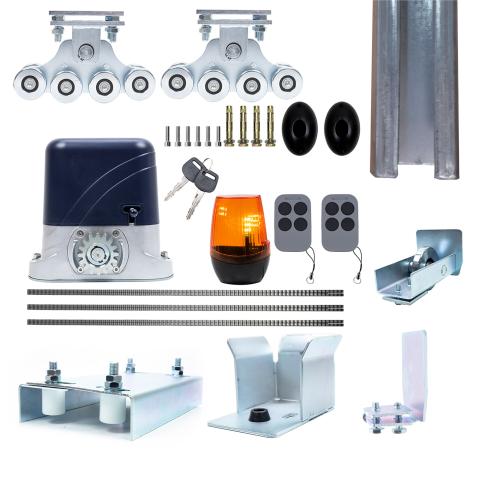

The automation kit for opening self-supporting gates is equipped with a 350W motor that can open or close gates with a maximum weight of 800 kg. The PNI AP800C gate automation kit includes all the components necessary to put into operation a practical access control system: the motor, warning light, two photocells, 6 meters of rack, wheel kit and PNI AP800C self-supporting gate automation accessory kit

Remote control
The gate can be opened and closed from the remote control or other access control devices such as access buttons or access keypads can be connected to the system.

Obstacle detection
To avoid accidents, two sensitivity levels can be set: high and low. If the gate is closing or opening and encounters an obstacle, the motor will stop. PNI AP800C self-supporting gate automation

Automatic closing
You can program the automatic closing of the gate after a certain number of seconds (10, 30 or 60). You can also program the condominium mode that allows simultaneous control from multiple access devices. In condominium mode, when the gate is opening, if the buttons on the remote control or on another connected access terminal (access button or access keypad) are pressed, they will not work until the gate is completely open. When the gate is closing, if the buttons on the remote control or another connected access terminal are pressed, the gate will stop and open completely, allowing access.

Assembly warnings
Do not weld when:
- it is mounted on the bearing sets (the bearing contact is damaged);
- the motor is mounted (it leads to the failure of the board and the wiring on it).
Automation of self-supporting gates PNI AP800C
Only available in Romania due to its excessive weight.
